Classes
struct	TinyIRReceiverStruct
	Control and data variables of the state machine for TinyReceiver. More...

struct	TinyIRReceiverCallbackDataStruct
	Is filled before calling the user callback to transfer received data to main loop for further processing. More...

Macros
#define	VERSION_TINYIR "2.2.0"

#define	VERSION_TINYIR_MAJOR 2

#define	VERSION_TINYIR_MINOR 2

#define	VERSION_TINYIR_PATCH 0

#define	NEC_ADDRESS_BITS 16
	Timing for NEC protocol. More...

#define	NEC_COMMAND_BITS 16

#define	NEC_BITS (NEC_ADDRESS_BITS + NEC_COMMAND_BITS)

#define	NEC_UNIT 560

#define	NEC_HEADER_MARK (16 * NEC_UNIT)

#define	NEC_HEADER_SPACE (8 * NEC_UNIT)

#define	NEC_BIT_MARK NEC_UNIT

#define	NEC_ONE_SPACE (3 * NEC_UNIT)

#define	NEC_ZERO_SPACE NEC_UNIT

#define	NEC_REPEAT_HEADER_SPACE (4 * NEC_UNIT)

#define	NEC_REPEAT_PERIOD 110000

#define	NEC_MINIMAL_DURATION 49900

#define	NEC_MAXIMUM_REPEAT_DISTANCE (NEC_REPEAT_PERIOD - NEC_MINIMAL_DURATION + 10000)

#define	FAST_KHZ 38
	The FAST protocol is a proprietary modified JVC protocol without address, with parity and with a shorter header. More...

#define	FAST_ADDRESS_BITS 0

#define	FAST_COMMAND_BITS 16

#define	FAST_BITS (FAST_ADDRESS_BITS + FAST_COMMAND_BITS)

#define	FAST_UNIT 526

#define	FAST_BIT_MARK FAST_UNIT

#define	FAST_ONE_SPACE (3 * FAST_UNIT)

#define	FAST_ZERO_SPACE FAST_UNIT

#define	FAST_HEADER_MARK (4 * FAST_UNIT)

#define	FAST_HEADER_SPACE (2 * FAST_UNIT)

#define	FAST_REPEAT_PERIOD 50000

#define	FAST_REPEAT_DISTANCE (FAST_REPEAT_PERIOD - (55 * FAST_UNIT))

#define	FAST_MAXIMUM_REPEAT_DISTANCE (FAST_REPEAT_DISTANCE + 10000)

#define	TINY_RECEIVER_ADDRESS_BITS NEC_ADDRESS_BITS

#define	TINY_RECEIVER_ADDRESS_HAS_8_BIT_PARITY true

#define	TINY_RECEIVER_COMMAND_BITS NEC_COMMAND_BITS

#define	TINY_RECEIVER_COMMAND_HAS_8_BIT_PARITY true

#define	TINY_RECEIVER_BITS NEC_BITS

#define	TINY_RECEIVER_UNIT NEC_UNIT

#define	TINY_RECEIVER_HEADER_MARK NEC_HEADER_MARK

#define	TINY_RECEIVER_HEADER_SPACE NEC_HEADER_SPACE

#define	TINY_RECEIVER_BIT_MARK NEC_BIT_MARK

#define	TINY_RECEIVER_ONE_SPACE NEC_ONE_SPACE

#define	TINY_RECEIVER_ZERO_SPACE NEC_ZERO_SPACE

#define	TINY_RECEIVER_MAXIMUM_REPEAT_DISTANCE NEC_MAXIMUM_REPEAT_DISTANCE

#define	MICROS_IN_ONE_SECOND 1000000L

#define	MICROS_IN_ONE_MILLI 1000L

#define	lowerValue25Percent(aDuration) (aDuration - (aDuration / 4))

#define	upperValue25Percent(aDuration) (aDuration + (aDuration / 4))

#define	lowerValue50Percent(aDuration) (aDuration / 2)

#define	upperValue50Percent(aDuration) (aDuration + (aDuration / 2))

#define	IR_RECEIVER_STATE_WAITING_FOR_START_MARK 0

#define	IR_RECEIVER_STATE_WAITING_FOR_START_SPACE 1

#define	IR_RECEIVER_STATE_WAITING_FOR_FIRST_DATA_MARK 2

#define	IR_RECEIVER_STATE_WAITING_FOR_DATA_SPACE 3

#define	IR_RECEIVER_STATE_WAITING_FOR_DATA_MARK 4

#define	IR_RECEIVER_STATE_WAITING_FOR_STOP_MARK 5

#define	IRDATA_FLAGS_EMPTY 0x00

#define	IRDATA_FLAGS_IS_REPEAT 0x01

#define	IRDATA_FLAGS_IS_AUTO_REPEAT 0x02

#define	IRDATA_FLAGS_PARITY_FAILED 0x04
	the current (autorepeat) frame violated parity check More...

#define	IR_RECEIVE_PIN 2

#define	TINY_RECEIVER_USE_ARDUINO_ATTACH_INTERRUPT

#define	USE_ATTACH_INTERRUPT

Functions
bool	isIRReceiverAttachedForTinyReceiver ()

bool	initPCIInterruptForTinyReceiver ()
	Sets IR_RECEIVE_PIN mode to INPUT, and if IR_FEEDBACK_LED_PIN is defined, sets feedback LED output mode. More...

bool	enablePCIInterruptForTinyReceiver ()
	Initializes hardware interrupt generation according to IR_RECEIVE_PIN or use attachInterrupt() function. More...

void	disablePCIInterruptForTinyReceiver ()

bool	isTinyReceiverIdle ()

bool	TinyReceiverDecode ()

void	printTinyReceiverResultMinimal (Print *aSerial)

void	sendFAST (uint8_t aSendPin, uint16_t aCommand, uint_fast8_t aNumberOfRepeats=0)

void	sendFast8BitAndParity (uint8_t aSendPin, uint8_t aCommand, uint_fast8_t aNumberOfRepeats=0)

void	sendONKYO (uint8_t aSendPin, uint16_t aAddress, uint16_t aCommand, uint_fast8_t aNumberOfRepeats=0, bool aSendNEC2Repeats=false)

void	sendNECMinimal (uint8_t aSendPin, uint16_t aAddress, uint16_t aCommand, uint_fast8_t aNumberOfRepeats=0) __attribute__((deprecated("Renamed to sendNEC().")))

void	sendNEC (uint8_t aSendPin, uint16_t aAddress, uint16_t aCommand, uint_fast8_t aNumberOfRepeats=0, bool aSendNEC2Repeats=false)

void	sendExtendedNEC (uint8_t aSendPin, uint16_t aAddress, uint16_t aCommand, uint_fast8_t aNumberOfRepeats=0, bool aSendNEC2Repeats=false)

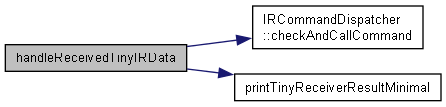

void	handleReceivedTinyIRData ()
	Declaration of the callback function provided by the user application. More...

void	IRPinChangeInterruptHandler (void)
	The ISR (Interrupt Service Routine) of TinyIRRreceiver. More...

Variables
volatile TinyIRReceiverCallbackDataStruct	TinyIRReceiverData

TinyIRReceiverStruct	TinyIRReceiverControl

volatile TinyIRReceiverCallbackDataStruct	TinyIRReceiverData

Detailed Description

Macro Definition Documentation

◆ FAST_ADDRESS_BITS

#define FAST_ADDRESS_BITS 0

Definition at line 91 of file TinyIR.h.

◆ FAST_BIT_MARK

#define FAST_BIT_MARK FAST_UNIT

Definition at line 97 of file TinyIR.h.

◆ FAST_BITS

#define FAST_BITS (FAST_ADDRESS_BITS + FAST_COMMAND_BITS)

Definition at line 93 of file TinyIR.h.

◆ FAST_COMMAND_BITS

#define FAST_COMMAND_BITS 16

Definition at line 92 of file TinyIR.h.

◆ FAST_HEADER_MARK

#define FAST_HEADER_MARK (4 * FAST_UNIT)

Definition at line 101 of file TinyIR.h.

◆ FAST_HEADER_SPACE

#define FAST_HEADER_SPACE (2 * FAST_UNIT)

Definition at line 102 of file TinyIR.h.

◆ FAST_KHZ

#define FAST_KHZ 38

The FAST protocol is a proprietary modified JVC protocol without address, with parity and with a shorter header.

FAST protocol characteristics:

Bit timing is like NEC or JVC
The header is shorter, 3156 vs. 12500
No address and 16 bit data, interpreted as 8 bit command and 8 bit inverted command, leading to a fixed protocol length of (6 + (16 * 3) + 1) * 526 = 55 * 526 = 28930 microseconds or 29 ms.
Repeats are sent as complete frames but in a 50 ms period / with a 21 ms distance.

Definition at line 90 of file TinyIR.h.

◆ FAST_MAXIMUM_REPEAT_DISTANCE

#define FAST_MAXIMUM_REPEAT_DISTANCE (FAST_REPEAT_DISTANCE + 10000)

Definition at line 106 of file TinyIR.h.

◆ FAST_ONE_SPACE

#define FAST_ONE_SPACE (3 * FAST_UNIT)

Definition at line 98 of file TinyIR.h.

◆ FAST_REPEAT_DISTANCE

#define FAST_REPEAT_DISTANCE (FAST_REPEAT_PERIOD - (55 * FAST_UNIT))

Definition at line 105 of file TinyIR.h.

◆ FAST_REPEAT_PERIOD

#define FAST_REPEAT_PERIOD 50000

Definition at line 104 of file TinyIR.h.

◆ FAST_UNIT

#define FAST_UNIT 526

Definition at line 95 of file TinyIR.h.

◆ FAST_ZERO_SPACE

#define FAST_ZERO_SPACE FAST_UNIT

Definition at line 99 of file TinyIR.h.

◆ IR_RECEIVE_PIN

#define IR_RECEIVE_PIN 2

Definition at line 129 of file TinyIRReceiver.hpp.

◆ IR_RECEIVER_STATE_WAITING_FOR_DATA_MARK

#define IR_RECEIVER_STATE_WAITING_FOR_DATA_MARK 4

Definition at line 195 of file TinyIR.h.

◆ IR_RECEIVER_STATE_WAITING_FOR_DATA_SPACE

#define IR_RECEIVER_STATE_WAITING_FOR_DATA_SPACE 3

Definition at line 194 of file TinyIR.h.

◆ IR_RECEIVER_STATE_WAITING_FOR_FIRST_DATA_MARK

#define IR_RECEIVER_STATE_WAITING_FOR_FIRST_DATA_MARK 2

Definition at line 193 of file TinyIR.h.

◆ IR_RECEIVER_STATE_WAITING_FOR_START_MARK

#define IR_RECEIVER_STATE_WAITING_FOR_START_MARK 0

Definition at line 191 of file TinyIR.h.

◆ IR_RECEIVER_STATE_WAITING_FOR_START_SPACE

#define IR_RECEIVER_STATE_WAITING_FOR_START_SPACE 1

Definition at line 192 of file TinyIR.h.

◆ IR_RECEIVER_STATE_WAITING_FOR_STOP_MARK

#define IR_RECEIVER_STATE_WAITING_FOR_STOP_MARK 5

Definition at line 196 of file TinyIR.h.

◆ IRDATA_FLAGS_EMPTY

#define IRDATA_FLAGS_EMPTY 0x00

Definition at line 224 of file TinyIR.h.

◆ IRDATA_FLAGS_IS_AUTO_REPEAT

#define IRDATA_FLAGS_IS_AUTO_REPEAT 0x02

Definition at line 226 of file TinyIR.h.

◆ IRDATA_FLAGS_IS_REPEAT

#define IRDATA_FLAGS_IS_REPEAT 0x01

Definition at line 225 of file TinyIR.h.

◆ IRDATA_FLAGS_PARITY_FAILED

#define IRDATA_FLAGS_PARITY_FAILED 0x04

the current (autorepeat) frame violated parity check

Definition at line 227 of file TinyIR.h.

◆ lowerValue25Percent

#define lowerValue25Percent ( aDuration ) (aDuration - (aDuration / 4))

Definition at line 183 of file TinyIR.h.

◆ lowerValue50Percent

#define lowerValue50Percent ( aDuration ) (aDuration / 2)

Definition at line 185 of file TinyIR.h.

◆ MICROS_IN_ONE_MILLI

#define MICROS_IN_ONE_MILLI 1000L

Definition at line 177 of file TinyIR.h.

◆ MICROS_IN_ONE_SECOND

#define MICROS_IN_ONE_SECOND 1000000L

Definition at line 173 of file TinyIR.h.

◆ NEC_ADDRESS_BITS

#define NEC_ADDRESS_BITS 16

Timing for NEC protocol.

see: https://www.sbprojects.net/knowledge/ir/nec.php LSB first, 1 start bit + 16 bit address + 8 bit data + 8 bit inverted data + 1 stop bit.

Definition at line 51 of file TinyIR.h.

◆ NEC_BIT_MARK

#define NEC_BIT_MARK NEC_UNIT

Definition at line 60 of file TinyIR.h.

◆ NEC_BITS

#define NEC_BITS (NEC_ADDRESS_BITS + NEC_COMMAND_BITS)

Definition at line 53 of file TinyIR.h.

◆ NEC_COMMAND_BITS

#define NEC_COMMAND_BITS 16

Definition at line 52 of file TinyIR.h.

◆ NEC_HEADER_MARK

#define NEC_HEADER_MARK (16 * NEC_UNIT)

Definition at line 57 of file TinyIR.h.

◆ NEC_HEADER_SPACE

#define NEC_HEADER_SPACE (8 * NEC_UNIT)

Definition at line 58 of file TinyIR.h.

◆ NEC_MAXIMUM_REPEAT_DISTANCE

#define NEC_MAXIMUM_REPEAT_DISTANCE (NEC_REPEAT_PERIOD - NEC_MINIMAL_DURATION + 10000)

Definition at line 68 of file TinyIR.h.

◆ NEC_MINIMAL_DURATION

#define NEC_MINIMAL_DURATION 49900

Definition at line 67 of file TinyIR.h.

◆ NEC_ONE_SPACE

#define NEC_ONE_SPACE (3 * NEC_UNIT)

Definition at line 61 of file TinyIR.h.

◆ NEC_REPEAT_HEADER_SPACE

#define NEC_REPEAT_HEADER_SPACE (4 * NEC_UNIT)

Definition at line 64 of file TinyIR.h.

◆ NEC_REPEAT_PERIOD

#define NEC_REPEAT_PERIOD 110000

Definition at line 66 of file TinyIR.h.

◆ NEC_UNIT

#define NEC_UNIT 560

Definition at line 55 of file TinyIR.h.

◆ NEC_ZERO_SPACE

#define NEC_ZERO_SPACE NEC_UNIT

Definition at line 62 of file TinyIR.h.

◆ TINY_RECEIVER_ADDRESS_BITS

#define TINY_RECEIVER_ADDRESS_BITS NEC_ADDRESS_BITS

Definition at line 135 of file TinyIR.h.

◆ TINY_RECEIVER_ADDRESS_HAS_8_BIT_PARITY

#define TINY_RECEIVER_ADDRESS_HAS_8_BIT_PARITY true

Definition at line 141 of file TinyIR.h.

◆ TINY_RECEIVER_BIT_MARK

#define TINY_RECEIVER_BIT_MARK NEC_BIT_MARK

Definition at line 157 of file TinyIR.h.

◆ TINY_RECEIVER_BITS

#define TINY_RECEIVER_BITS NEC_BITS

Definition at line 151 of file TinyIR.h.

◆ TINY_RECEIVER_COMMAND_BITS

#define TINY_RECEIVER_COMMAND_BITS NEC_COMMAND_BITS

Definition at line 144 of file TinyIR.h.

◆ TINY_RECEIVER_COMMAND_HAS_8_BIT_PARITY

#define TINY_RECEIVER_COMMAND_HAS_8_BIT_PARITY true

Definition at line 148 of file TinyIR.h.

◆ TINY_RECEIVER_HEADER_MARK

#define TINY_RECEIVER_HEADER_MARK NEC_HEADER_MARK

Definition at line 154 of file TinyIR.h.

◆ TINY_RECEIVER_HEADER_SPACE

#define TINY_RECEIVER_HEADER_SPACE NEC_HEADER_SPACE

Definition at line 155 of file TinyIR.h.

◆ TINY_RECEIVER_MAXIMUM_REPEAT_DISTANCE

#define TINY_RECEIVER_MAXIMUM_REPEAT_DISTANCE NEC_MAXIMUM_REPEAT_DISTANCE

Definition at line 161 of file TinyIR.h.

◆ TINY_RECEIVER_ONE_SPACE

#define TINY_RECEIVER_ONE_SPACE NEC_ONE_SPACE

Definition at line 158 of file TinyIR.h.

◆ TINY_RECEIVER_UNIT

#define TINY_RECEIVER_UNIT NEC_UNIT

Definition at line 152 of file TinyIR.h.

◆ TINY_RECEIVER_USE_ARDUINO_ATTACH_INTERRUPT

#define TINY_RECEIVER_USE_ARDUINO_ATTACH_INTERRUPT

Definition at line 148 of file TinyIRReceiver.hpp.

◆ TINY_RECEIVER_ZERO_SPACE

#define TINY_RECEIVER_ZERO_SPACE NEC_ZERO_SPACE

Definition at line 159 of file TinyIR.h.

◆ upperValue25Percent

#define upperValue25Percent ( aDuration ) (aDuration + (aDuration / 4))

Definition at line 184 of file TinyIR.h.

◆ upperValue50Percent

#define upperValue50Percent ( aDuration ) (aDuration + (aDuration / 2))

Definition at line 186 of file TinyIR.h.

◆ USE_ATTACH_INTERRUPT

#define USE_ATTACH_INTERRUPT

Definition at line 501 of file TinyIRReceiver.hpp.

◆ VERSION_TINYIR

#define VERSION_TINYIR "2.2.0"

Definition at line 38 of file TinyIR.h.

◆ VERSION_TINYIR_MAJOR

#define VERSION_TINYIR_MAJOR 2

Definition at line 39 of file TinyIR.h.

◆ VERSION_TINYIR_MINOR

#define VERSION_TINYIR_MINOR 2

Definition at line 40 of file TinyIR.h.

◆ VERSION_TINYIR_PATCH

#define VERSION_TINYIR_PATCH 0

Definition at line 41 of file TinyIR.h.

Function Documentation

◆ disablePCIInterruptForTinyReceiver()

void disablePCIInterruptForTinyReceiver ( )

Definition at line 636 of file TinyIRReceiver.hpp.

◆ enablePCIInterruptForTinyReceiver()

bool enablePCIInterruptForTinyReceiver ( )

Initializes hardware interrupt generation according to IR_RECEIVE_PIN or use attachInterrupt() function.

Returns: true if interrupt was successfully enabled

Definition at line 565 of file TinyIRReceiver.hpp.

◆ handleReceivedTinyIRData()

void handleReceivedTinyIRData ( )

Declaration of the callback function provided by the user application.

It is called every time a complete IR command or repeat was received.

◆ initPCIInterruptForTinyReceiver()

bool initPCIInterruptForTinyReceiver ( )

Sets IR_RECEIVE_PIN mode to INPUT, and if IR_FEEDBACK_LED_PIN is defined, sets feedback LED output mode.

Then call enablePCIInterruptForTinyReceiver()

Definition at line 456 of file TinyIRReceiver.hpp.

◆ IRPinChangeInterruptHandler()

void IRPinChangeInterruptHandler ( void )

The ISR (Interrupt Service Routine) of TinyIRRreceiver.

It handles the NEC protocol decoding and calls the user callback function on complete. 5 us + 3 us for push + pop for a 16MHz ATmega

Definition at line 167 of file TinyIRReceiver.hpp.

◆ isIRReceiverAttachedForTinyReceiver()

bool isIRReceiverAttachedForTinyReceiver ( )

Definition at line 445 of file TinyIRReceiver.hpp.

◆ isTinyReceiverIdle()

bool isTinyReceiverIdle ( )

Definition at line 426 of file TinyIRReceiver.hpp.

◆ printTinyReceiverResultMinimal()

void printTinyReceiverResultMinimal ( Print * aSerial )

Definition at line 465 of file TinyIRReceiver.hpp.

◆ sendExtendedNEC()

void sendExtendedNEC	(	uint8_t	aSendPin,
		uint16_t	aAddress,
		uint16_t	aCommand,
		uint_fast8_t	aNumberOfRepeats = `0`,
		bool	aSendNEC2Repeats = `false`
	)

Definition at line 234 of file TinyIRSender.hpp.

◆ sendFAST()

void sendFAST	(	uint8_t	aSendPin,
		uint16_t	aCommand,
		uint_fast8_t	aNumberOfRepeats = `0`
	)

Definition at line 294 of file TinyIRSender.hpp.

◆ sendFast8BitAndParity()

void sendFast8BitAndParity	(	uint8_t	aSendPin,
		uint8_t	aCommand,
		uint_fast8_t	aNumberOfRepeats = `0`
	)

Definition at line 287 of file TinyIRSender.hpp.

◆ sendNEC()

void sendNEC	(	uint8_t	aSendPin,
		uint16_t	aAddress,
		uint16_t	aCommand,
		uint_fast8_t	aNumberOfRepeats = `0`,
		bool	aSendNEC2Repeats = `false`
	)

Definition at line 168 of file TinyIRSender.hpp.

◆ sendNECMinimal()

void sendNECMinimal	(	uint8_t	aSendPin,
		uint16_t	aAddress,
		uint16_t	aCommand,
		uint_fast8_t	aNumberOfRepeats = `0`
	)

Definition at line 165 of file TinyIRSender.hpp.

◆ sendONKYO()

void sendONKYO	(	uint8_t	aSendPin,
		uint16_t	aAddress,
		uint16_t	aCommand,
		uint_fast8_t	aNumberOfRepeats = `0`,
		bool	aSendNEC2Repeats = `false`
	)

Definition at line 114 of file TinyIRSender.hpp.

◆ TinyReceiverDecode()

bool TinyReceiverDecode ( )

Definition at line 433 of file TinyIRReceiver.hpp.

Variable Documentation

◆ TinyIRReceiverControl

TinyIRReceiverStruct TinyIRReceiverControl

Definition at line 106 of file TinyIRReceiver.hpp.

◆ TinyIRReceiverData [1/2]

volatile TinyIRReceiverCallbackDataStruct TinyIRReceiverData

Definition at line 107 of file TinyIRReceiver.hpp.

◆ TinyIRReceiverData [2/2]
