IRremote
ir_RC5_RC6.hpp File Reference

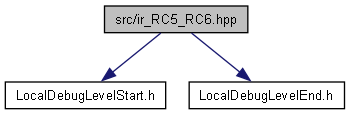

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Macros

#define RC5_ADDRESS_BITS   5

#define RC5_COMMAND_BITS   6

#define RC5_COMMAND_FIELD_BIT   1

#define RC5_TOGGLE_BIT   1

#define RC5_BITS   (RC5_COMMAND_FIELD_BIT + RC5_TOGGLE_BIT + RC5_ADDRESS_BITS + RC5_COMMAND_BITS)

#define RC5_UNIT   889

#define MIN_RC5_MARKS   ((RC5_BITS + 1) / 2)

#define RC5_DURATION   (15L * RC5_UNIT)

#define RC5_REPEAT_PERIOD   (128L * RC5_UNIT)

#define RC5_REPEAT_DISTANCE   (RC5_REPEAT_PERIOD - RC5_DURATION)

#define RC5_MAXIMUM_REPEAT_DISTANCE   (RC5_REPEAT_DISTANCE + (RC5_REPEAT_DISTANCE / 4))

#define MIN_RC6_SAMPLES   1

#define RC6_RPT_LENGTH   46000

#define RC6_LEADING_BIT   1

#define RC6_MODE_BITS   3

#define RC6_TOGGLE_BIT   1

#define RC6_TOGGLE_BIT_INDEX   RC6_MODE_BITS

#define RC6_ADDRESS_BITS   8

#define RC6_COMMAND_BITS   8

#define RC6_BITS   (RC6_LEADING_BIT + RC6_MODE_BITS + RC6_TOGGLE_BIT + RC6_ADDRESS_BITS + RC6_COMMAND_BITS)

#define RC6_UNIT   444

#define RC6_HEADER_MARK   (6 * RC6_UNIT)

#define RC6_HEADER_SPACE   (2 * RC6_UNIT)

#define RC6_TRAILING_SPACE   (6 * RC6_UNIT)

#define MIN_RC6_MARKS   4 + ((RC6_ADDRESS_BITS + RC6_COMMAND_BITS) / 2)

#define RC6_REPEAT_DISTANCE   107000

#define RC6_MAXIMUM_REPEAT_DISTANCE   (RC6_REPEAT_DISTANCE + (RC6_REPEAT_DISTANCE / 4))


Variables

uint8_t sLastSendToggleValue = 1
