IRrecv Class Reference
#include <IRremoteInt.h>
Collaboration diagram for IRrecv:
Public Member Functions | |
| IRrecv () | |
| Instantiate the IRrecv class. More... | |
| IRrecv (uint_fast8_t aReceivePin) __attribute__((deprecated("Please use the default IRrecv instance \"IrReceiver\" and IrReceiver.begin() | |
| IRrecv (uint_fast8_t aReceivePin, uint_fast8_t aFeedbackLEDPin) __attribute__((deprecated("Please use the default IRrecv instance \"IrReceiver\" and IrReceiver.begin() | |
| Instantiate the IRrecv class. More... | |
| void | setReceivePin (uint_fast8_t aReceivePinNumber) |
| Sets / changes the receiver pin number. More... | |
| void | registerReceiveCompleteCallback (void(*aReceiveCompleteCallbackFunction)(void)) |
| Sets the function to call if a complete protocol frame has arrived. More... | |
| void | ReceiveInterruptHandler () |
| void | begin (uint_fast8_t aReceivePin, bool aEnableLEDFeedback=false, uint_fast8_t aFeedbackLEDPin=USE_DEFAULT_FEEDBACK_LED_PIN) |
| Initializes the receive and feedback pin. More... | |
| void | start () |
| Start the receiving process. More... | |
| void | enableIRIn () |
| Alias for start(). More... | |
| void | restartTimer () |
| void | restartTimer (uint32_t aMicrosecondsToAddToGapCounter) |
| Configures the timer and the state machine for IR reception. More... | |
| void | restartTimerWithTicksToAdd (uint16_t aTicksToAddToGapCounter) |
| Configures the timer and the state machine for IR reception. More... | |
| void | restartAfterSend () |
| Restarts receiver after send. More... | |
| bool | available () |
| Returns true if IR receiver data is available. More... | |
| IRData * | read () |
| Returns pointer to IrReceiver.decodedIRData if IR receiver data is available, else nullptr. More... | |
| void | stopTimer () |
| void | stop () |
| Disables the timer for IR reception. More... | |
| void | disableIRIn () |
| Alias for stop(). More... | |
| void | end () |
| Alias for stop(). More... | |
| bool | isIdle () |
| Returns status of reception. More... | |
| bool | decode () |
| The main decode function, attempts to decode the recently receive IR signal. More... | |
| void | resume () |
| Restart the ISR (Interrupt Service Routine) state machine, to enable receiving of the next IR frame. More... | |
| void | printIRResultMinimal (Print *aSerial) |
| Function to print protocol number, address, command, raw data and repeat flag of IrReceiver.decodedIRData in one short line. More... | |
| void | printIRDuration (Print *aSerial, bool aOutputMicrosecondsInsteadOfTicks) |
| void | printIRResultRawFormatted (Print *aSerial, bool aOutputMicrosecondsInsteadOfTicks=true) |
| Dump out the timings in IrReceiver.irparams.rawbuf[] array 8 values per line. More... | |
| void | printIRResultAsCVariables (Print *aSerial) |
| Print results as C variables to be used for sendXXX() uint16_t address = 0x44; uint16_t command = 0x11; uint32_t rawData = 0x44BB11EE;. More... | |
| uint8_t | getMaximumMarkTicksFromRawData () |
| uint8_t | getMaximumSpaceTicksFromRawData () |
| uint8_t | getMaximumTicksFromRawData (bool aSearchSpaceInsteadOfMark) |
| uint32_t | getTotalDurationOfRawData () |
| bool | printIRResultShort (Print *aSerial, bool aPrintRepeatGap, bool aCheckForRecordGapsMicros) __attribute__((deprecated("Remove second parameter |
| Function to print values and flags of IrReceiver.decodedIRData in one line. More... | |
| bool | printIRResultShort (Print *aSerial, bool aCheckForRecordGapsMicros=true) |
| void | printDistanceWidthTimingInfo (Print *aSerial, DistanceWidthTimingInfoStruct *aDistanceWidthTimingInfo) |
| void | printIRSendUsage (Print *aSerial) |
| Function to print values and flags of IrReceiver.decodedIRData in one line. More... | |
| const char * | getProtocolString () |
| void | printIRResultAsCArray (Print *aSerial, bool aOutputMicrosecondsInsteadOfTicks=true, bool aDoCompensate=true) |
| void | compensateAndPrintIRResultAsCArray (Print *aSerial, bool aOutputMicrosecondsInsteadOfTicks=true) |
| Dump out the IrReceiver.irparams.rawbuf[] to be used as C definition for sendRaw(). More... | |
| void | compensateAndPrintIRResultAsPronto (Print *aSerial, uint16_t frequency=38000U) |
| Print the result (second argument) as Pronto Hex on the Print supplied as argument. More... | |
| void | compensateAndStoreIRResultInArray (uint8_t *aArrayPtr) |
| Store the decodedIRData to be used for sendRaw(). More... | |
| size_t | compensateAndStorePronto (String *aString, uint16_t frequency=38000U) |
| void | decodePulseDistanceWidthData (PulseDistanceWidthProtocolConstants *aProtocolConstants, uint_fast8_t aNumberOfBits, IRRawlenType aStartOffset=3) |
| Decode pulse distance protocols for PulseDistanceWidthProtocolConstants. More... | |
| void | decodePulseDistanceWidthData_P (PulseDistanceWidthProtocolConstants const *aProtocolConstantsPGM, uint_fast8_t aNumberOfBits, IRRawlenType aStartOffset=3) |
| void | decodePulseDistanceWidthData (uint_fast8_t aNumberOfBits, IRRawlenType aStartOffset, uint16_t aOneMicros, bool aIsPulseWidthProtocol, bool aMSBfirst) |
| Decode pulse distance width protocols. More... | |
| void | decodeWithThresholdPulseDistanceWidthData (uint_fast8_t aNumberOfBits, IRRawlenType aStartOffset, uint16_t aOneThresholdMicros, bool aIsPulseWidthProtocol, bool aMSBfirst) |
| New threshold decoder to be activated by USE_THRESHOLD_DECODER Assumes a 0 for shorter and a 1 for longer timing. More... | |
| void | decodePulseDistanceWidthData (uint_fast8_t aNumberOfBits, IRRawlenType aStartOffset, uint16_t aOneMarkMicros, uint16_t aOneSpaceMicros, uint16_t aZeroMarkMicros, bool aMSBfirst) |
| Old deprecated version with 3 timing parameters instead of one and a aIsPulseWidthProtocol flag. More... | |
| void | decodePulseDistanceWidthData (uint_fast8_t aNumberOfBits, IRRawlenType aStartOffset, uint16_t aOneMarkMicros, uint16_t aZeroMarkMicros, uint16_t aOneSpaceMicros, uint16_t aZeroSpaceMicros, bool aMSBfirst) __attribute__((deprecated("Please use decodePulseDistanceWidthData() with 6 parameters."))) |
| bool | decodeStrictPulseDistanceWidthData (uint_fast8_t aNumberOfBits, IRRawlenType aStartOffset, uint16_t aOneMarkMicros, uint16_t aOneSpaceMicros, uint16_t aZeroMarkMicros, uint16_t aZeroSpaceMicros, bool aMSBfirst) |
| bool | decodeBiPhaseData (uint_fast8_t aNumberOfBits, IRRawlenType aStartOffset, uint_fast8_t aStartClockCount, uint_fast8_t aValueOfSpaceToMarkTransition, uint16_t aBiphaseTimeUnit) |
| void | initBiphaselevel (uint_fast8_t aRCDecodeRawbuffOffset, uint16_t aBiphaseTimeUnit) |
| uint_fast8_t | getBiphaselevel () |
| Gets the level of one time interval (aBiphaseTimeUnit) at a time from the raw buffer. More... | |
| bool | decodeBangOlufsen () |
| bool | decodeBoseWave () |
| bool | decodeDenon () |
| bool | decodeFAST () |
| bool | decodeJVC () |
| bool | decodeKaseikyo () |
| bool | decodeLegoPowerFunctions () |
| bool | decodeLG () |
| bool | decodeMagiQuest () |
| bool | decodeNEC () |
| Decodes also Onkyo and Apple. More... | |
| bool | decodeRC5 () |
| Try to decode data as RC5 protocol. More... | |
| bool | decodeRC6 () |
| Try to decode data as RC6 protocol. More... | |
| bool | decodeSamsung () |
| bool | decodeSharp () |
| bool | decodeSony () |
| bool | decodeWhynter () |
| bool | decodeDistanceWidth () |
| bool | decodeHash () |
| Decodes an arbitrary IR code to a 32-bit value. More... | |
| bool | decodeShuzu () |
| bool | decodeDenonOld (decode_results *aResults) |
| bool | decodeJVCMSB (decode_results *aResults) |
| bool | decodeLGMSB (decode_results *aResults) |
| bool | decodeNECMSB (decode_results *aResults) |
| bool | decodePanasonicMSB (decode_results *aResults) |
| bool | decodeSonyMSB (decode_results *aResults) |
| bool | decodeSAMSUNG (decode_results *aResults) |
| bool | decodeHashOld (decode_results *aResults) |
| bool | decode_old (decode_results *aResults) |
| bool | decode (decode_results *aResults) __attribute__((deprecated("Please use IrReceiver.decode() without a parameter and IrReceiver.decodedIRData.<fieldname> ."))) |
| void | blink13 (uint8_t aEnableLEDFeedback) __attribute__((deprecated("Please use setLEDFeedback() or enableLEDFeedback() / disableLEDFeedback()."))) |
| Old deprecated function name for setLEDFeedback() or enableLEDFeedback() / disableLEDFeedback() More... | |
| void | initDecodedIRData () |
| Is internally called by decode before calling decoders. More... | |
| uint_fast8_t | compare (uint16_t oldval, uint16_t newval) |
| Compare two (tick) values for Hash decoder Use a tolerance of 20% to enable e.g. More... | |
| bool | checkHeader (PulseDistanceWidthProtocolConstants *aProtocolConstants) |
| bool | checkHeader_P (PulseDistanceWidthProtocolConstants const *aProtocolConstantsPGM) |
| void | checkForRepeatSpaceTicksAndSetFlag (uint16_t aMaximumRepeatSpaceTicks) |
| bool | checkForRecordGapsMicros (Print *aSerial) |
| Checks if protocol is not detected and detected space between two transmissions is smaller than known value for protocols (Sony with around 24 ms) More... | |
Static Public Member Functions | |
| static void | printActiveIRProtocols (Print *aSerial) |
Public Attributes | |
| and not your own IRrecv | instance |
| bool it is not supported any | more |
| irparams_struct | irparams |
| IRData | decodedIRData |
| decode_type_t | lastDecodedProtocol |
| uint16_t | lastDecodedAddress |
| uint16_t | lastDecodedCommand |
| uint8_t | repeatCount |
Detailed Description
Definition at line 226 of file IRremoteInt.h.
Member Function Documentation
◆ decode()
| bool IRrecv::decode | ( | decode_results * | aResults | ) |
Definition at line 28 of file IRremote.h.
◆ decodeBangOlufsen()
| bool IRrecv::decodeBangOlufsen | ( | ) |
Definition at line 298 of file ir_BangOlufsen.hpp.
◆ decodeBiPhaseData()
| bool IRrecv::decodeBiPhaseData | ( | uint_fast8_t | aNumberOfBits, |
| IRRawlenType | aStartOffset, | ||
| uint_fast8_t | aStartClockCount, | ||
| uint_fast8_t | aValueOfSpaceToMarkTransition, | ||
| uint16_t | aBiphaseTimeUnit | ||
| ) |

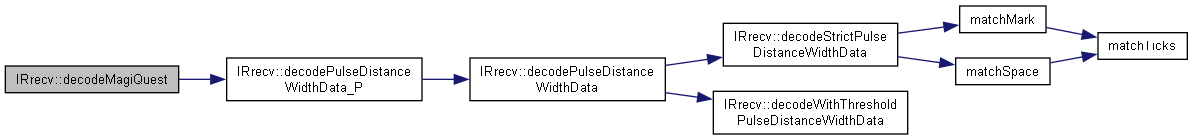

◆ decodeMagiQuest()
| bool IRrecv::decodeMagiQuest | ( | ) |
Definition at line 155 of file ir_MagiQuest.hpp.
◆ decodePanasonicMSB()
| bool IRrecv::decodePanasonicMSB | ( | decode_results * | aResults | ) |

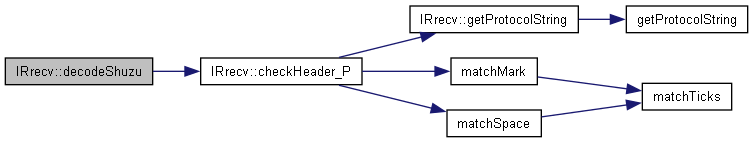

◆ decodeShuzu()
| bool IRrecv::decodeShuzu | ( | ) |
Definition at line 139 of file ir_Template.hpp.
Member Data Documentation
◆ decodedIRData
| IRData IRrecv::decodedIRData |
Definition at line 409 of file IRremoteInt.h.
◆ instance
| and not your own IRrecv IRrecv::instance |
Definition at line 236 of file IRremoteInt.h.
◆ irparams
| irparams_struct IRrecv::irparams |
Definition at line 408 of file IRremoteInt.h.
◆ lastDecodedAddress
| uint16_t IRrecv::lastDecodedAddress |
Definition at line 413 of file IRremoteInt.h.
◆ lastDecodedCommand
| uint16_t IRrecv::lastDecodedCommand |
Definition at line 414 of file IRremoteInt.h.
◆ lastDecodedProtocol
| decode_type_t IRrecv::lastDecodedProtocol |
Definition at line 412 of file IRremoteInt.h.
◆ more
| bool it is not supported any IRrecv::more |
Definition at line 292 of file IRremoteInt.h.
◆ repeatCount
| uint8_t IRrecv::repeatCount |
Definition at line 419 of file IRremoteInt.h.
The documentation for this class was generated from the following files:
- src/IRremoteInt.h
- src/ir_BangOlufsen.hpp
- src/ir_BoseWave.hpp
- src/ir_Denon.hpp
- src/ir_DistanceWidthProtocol.hpp
- src/ir_FAST.hpp
- src/ir_JVC.hpp
- src/ir_Kaseikyo.hpp
- src/ir_Lego.hpp
- src/ir_LG.hpp
- src/ir_MagiQuest.hpp
- src/ir_NEC.hpp
- src/ir_Others.hpp
- src/ir_Pronto.hpp
- src/ir_RC5_RC6.hpp
- src/ir_Samsung.hpp
- src/ir_Sony.hpp
- src/ir_Template.hpp
- src/IRFeedbackLED.hpp
- src/IRReceive.hpp
- src/IRremote.h
